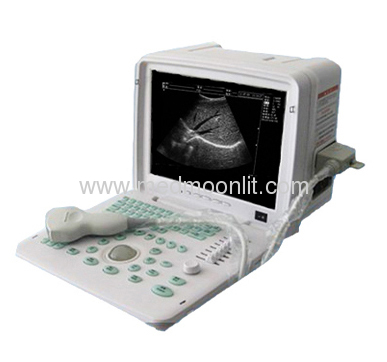

ultrasound scanner from China manufacturer - Shanghai Moonlit Medical Electronics Co., Ltd

Payment Terms:	T/T,WU
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MM-Ult03

Production Capacity: 50 unit

Delivery Date: 15 working days

Means of Transport: Ocean,Land,Air

Packing: Standard Packing

Brand Name: Moonlit

.High-accuracy DSC Digital image formation technology
.Intelligentized 8-segment TGC adjustment
.Progressive SMT components technology

Specification:

Scanning mode: convex / linear / micro-convex

Probes: 96 elements convex probe, Trans-vaginal probe, Transrectal probe,
high frequency linear probe

Monitor: 12 inch LED monitor

Operation panel: user-friendly, convenient and flexible with backlit silica
gel keyboard & track ball operation

Display mode: B, B+B, B+M, M, 4B

Detecting depth: ≥200mm

Resolution: lateral≤2mm, axial≤1mm

Blind Zone: ≤3mm

Geometry precision: lateral≤5%, axial≤5%

Gray scale: 256

Electronical focusing: 4 focuses combination randomly

Cine loop: 256 frames, realized in automatic successive playback
and manual single step forward, backward playback

Image storage: 8

Local zoom can be used at real time.

Magnification: ×0.8, ×0.85, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30,
×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)

Body marks: 30

Probe interface: 2

Pseudo color: 8

Image processing: up/ down, left / right, black / white convertion, edge enhancement,
gamma correction, frame correlation, pseudo color processor( need external color display).

Measurement: distance, perimeter, area, volume, heart rate, gestational week,FW,AFI,EDD etc.

Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.

Output interface: PAL-D,SVGA (SVGA color monitor), USB port (optional).

With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC100V-240V, 50/60Hz

Standard configuration:

12-inch LED

3.5MHz Multi-frequency convex probe

Options:

7.5MHz high frequency Linear probe

6.5MHz Trans-vaginal probe

7.5 MHz Transrectal probe
